Home » Our Products » Operation Theater Table » Electro Mechanical Table » ELECTROMAC-1

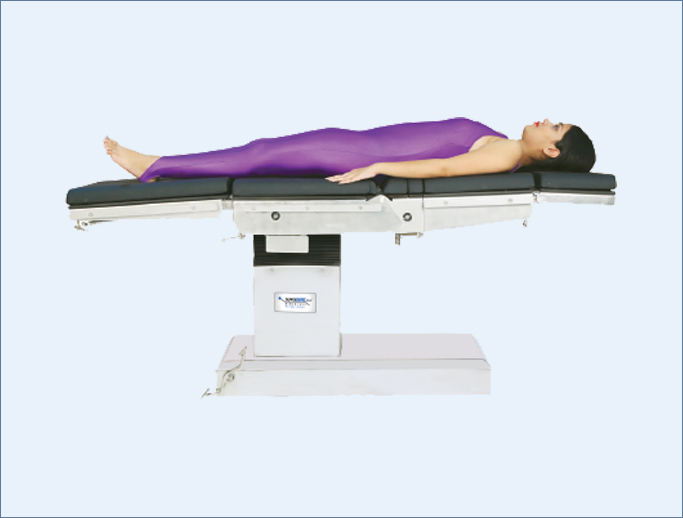

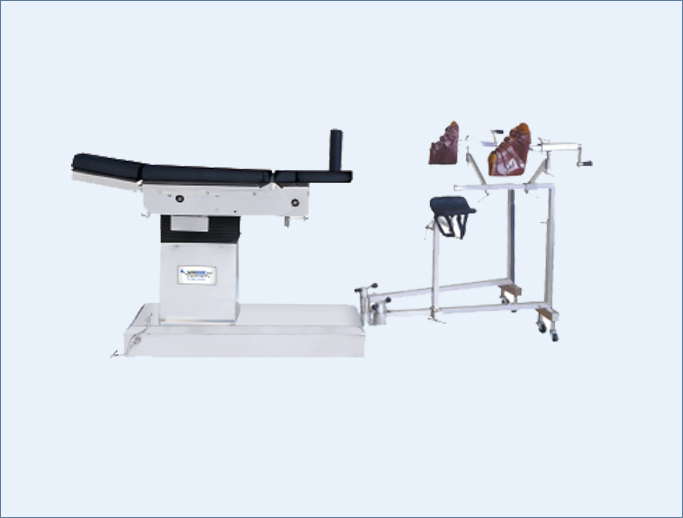

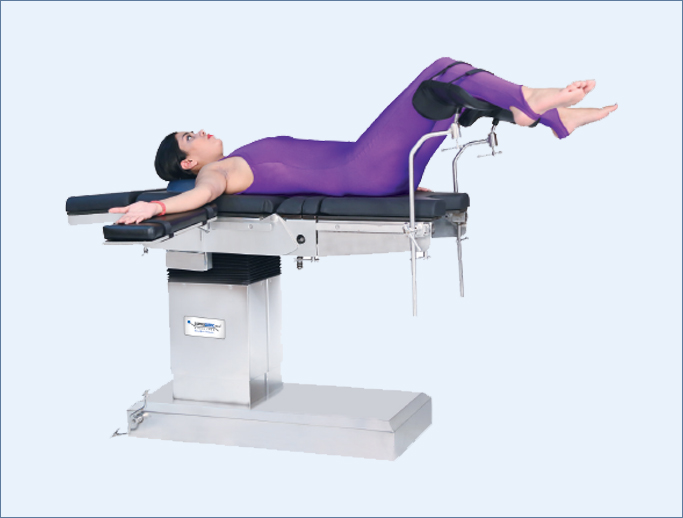

ELECTROMAC-1

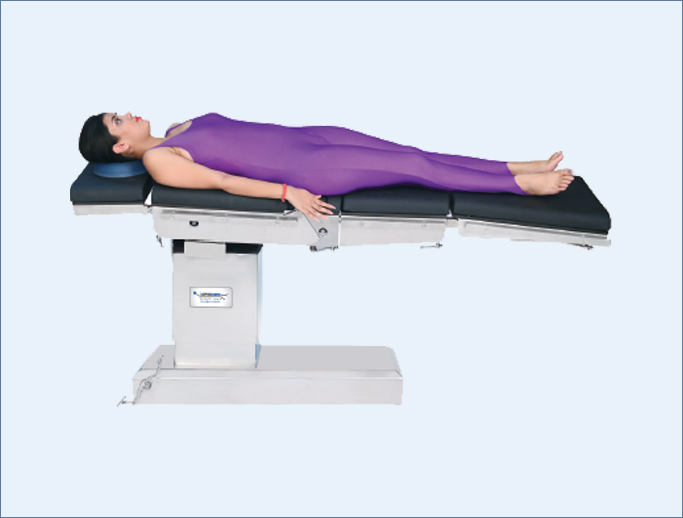

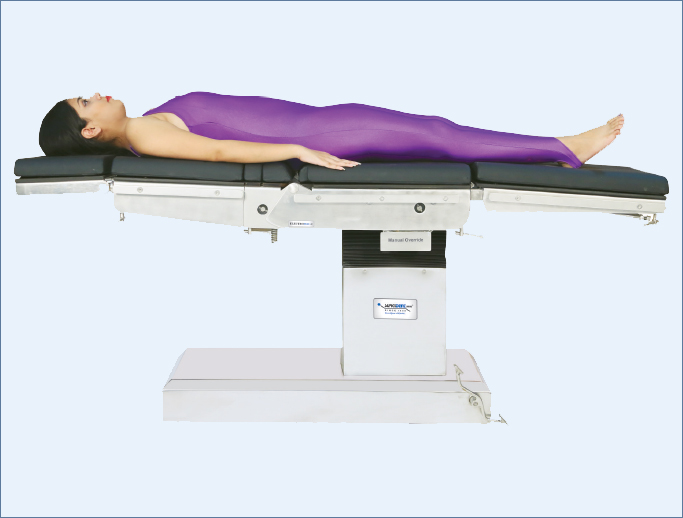

The Exceptional design, high quality and engineering excellence of our electrical surgical table satisfy not only customer's expected reliability, performance, safety and value but also offer instant, almost unlimited articulations.

Surgident Electromac-1 offers outstanding imaging access and functionality, the interchangeability of head and leg section allow unobstructed C-arm access in the most extreme table configuration.
Technical Specification

ELECTROMAC-1 XL-3000
Elevation Range Highest 1035mm 1035mm
Lowest 735mm 735mm

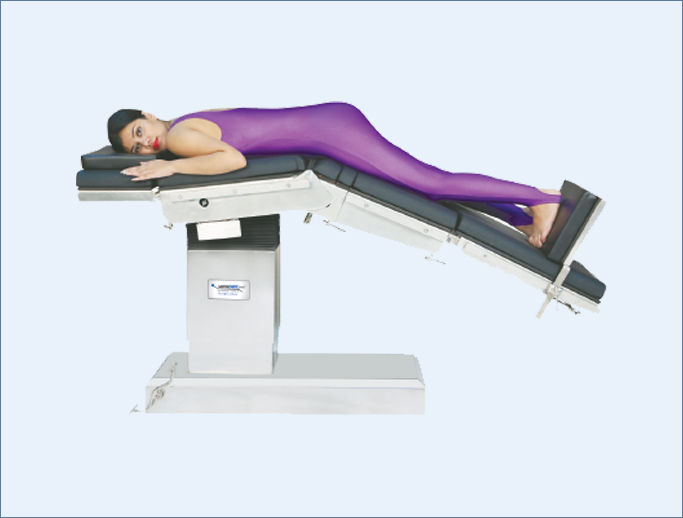

Trend./Rev. Trend. Head Down 25° 25°
Head Up 25° 25°

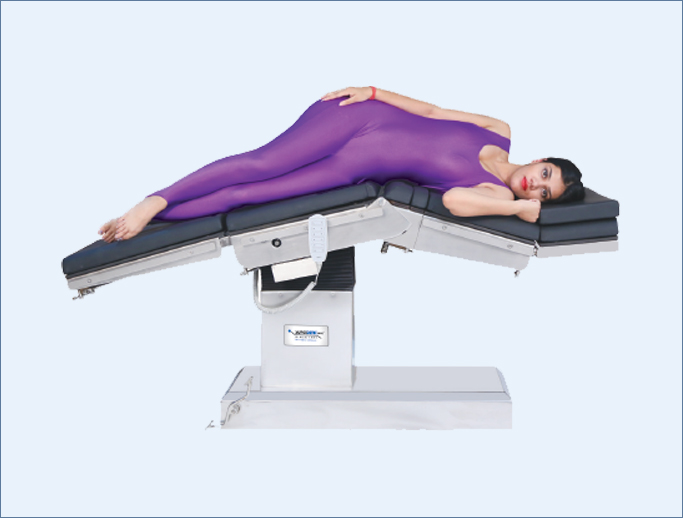

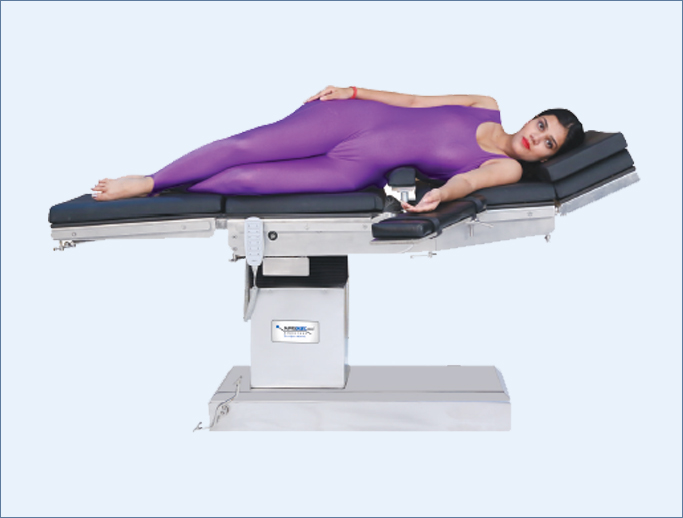

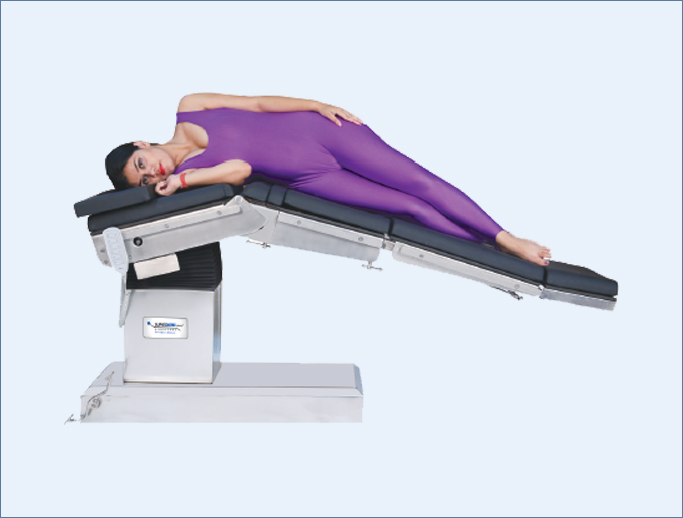

Lateral Tilt Right 20° 20°
Left 20° 20°

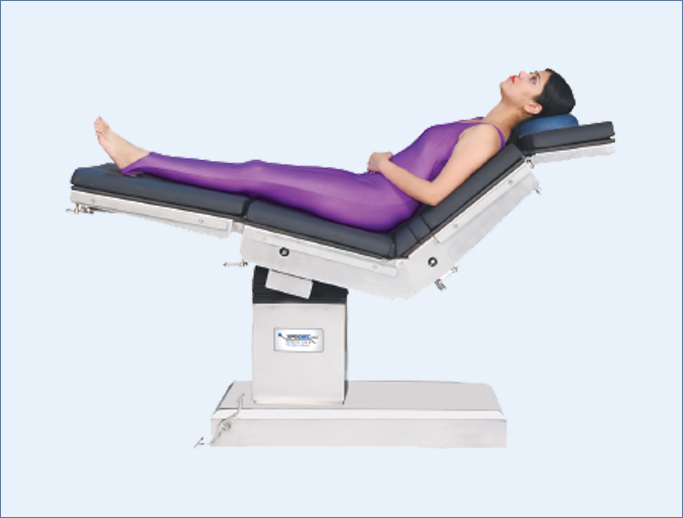

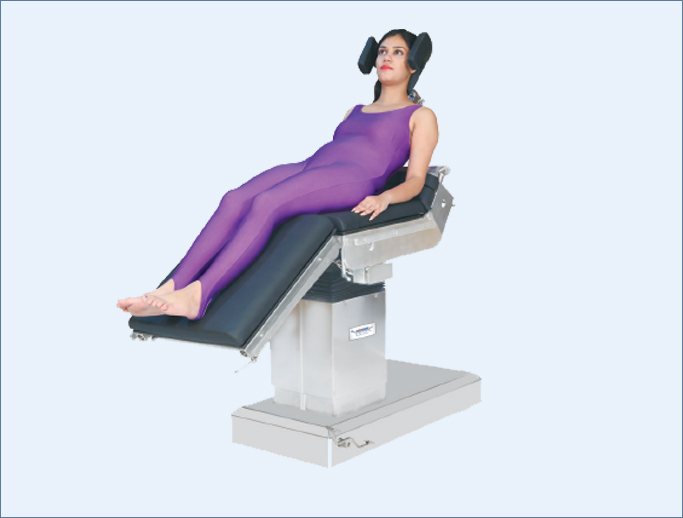

Back Section Up 70° 70°
Down 30° 30°

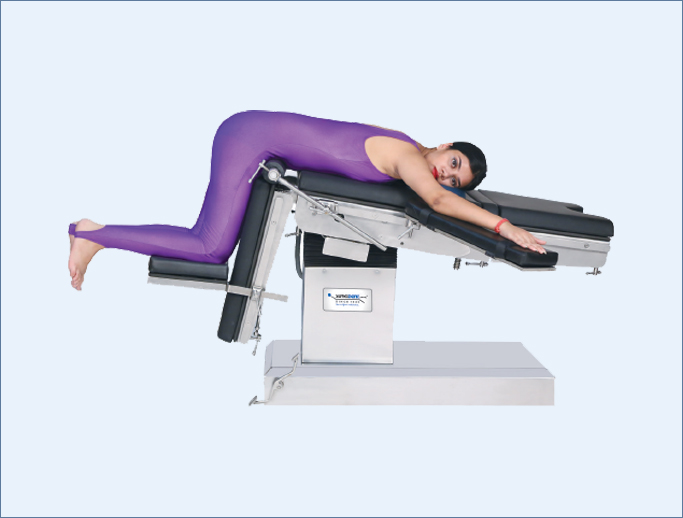

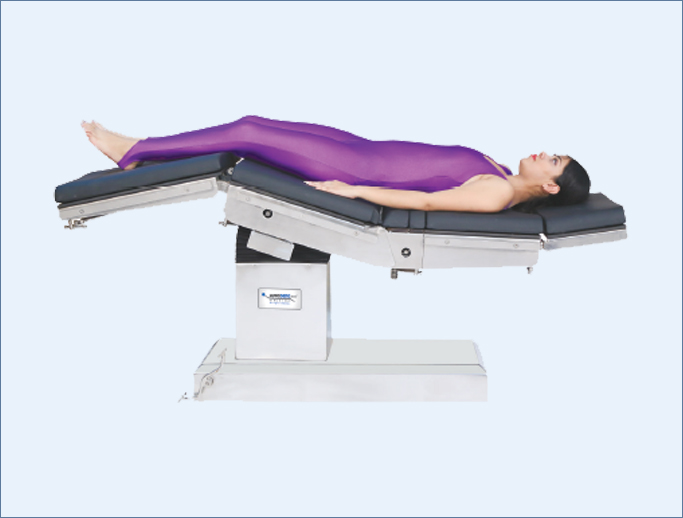

Flex & Reflex 220°/100° 220°/100°
Leg Section (Manual) Up 15° 15°
Down 90° 90°
Head Section (Manual) Up 40° 40°
Down 90° 90°


Optional Features :

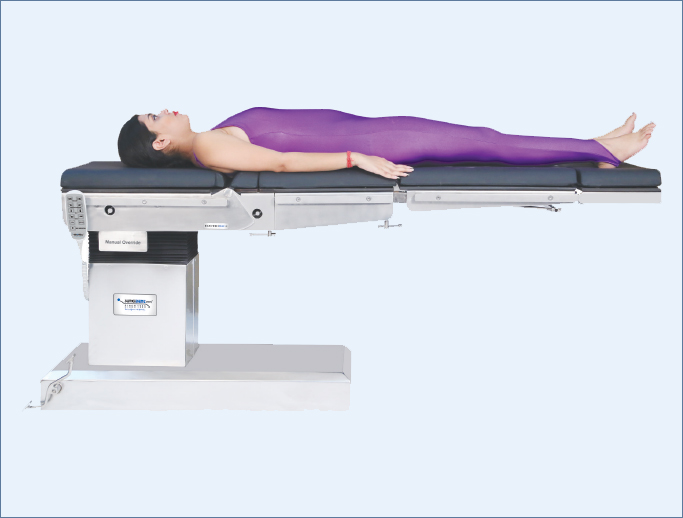

  • Manual Override System : The table is equipped with a hand crank operated manual override system to ensure functionality without any interruption in case of powerfailure or even remote or control boxfailure.
  • Battery Backup : Built-in battery backup system to ensure operational readiness in case of power supply interruptions.
  • Memory Function : Fortwo position with backlit remote & additional electric override panel
  • Split Leg Section with Abduction facility
  • Table Top Slide upto 250mm
  • Electric floor Locking
  • Two Hinged Head Rest: Can be tilted as well as raised in height
Standard Accessories
  • L-shaped Anesthetic Frame 1 Pc.
  • Shoulder Support with Pad 1 Pair
  • Arm Board with S.S. Top 2 Pes.
  • Lateral Support with Pad 1 Pair
  • Wrist Strap 1 Pair
  • Knee Crutches Goepel Type 1 Pair
  • Waterproof Rubber Mattress 1 Set
